Description
Reliable diagnosis in your dental office

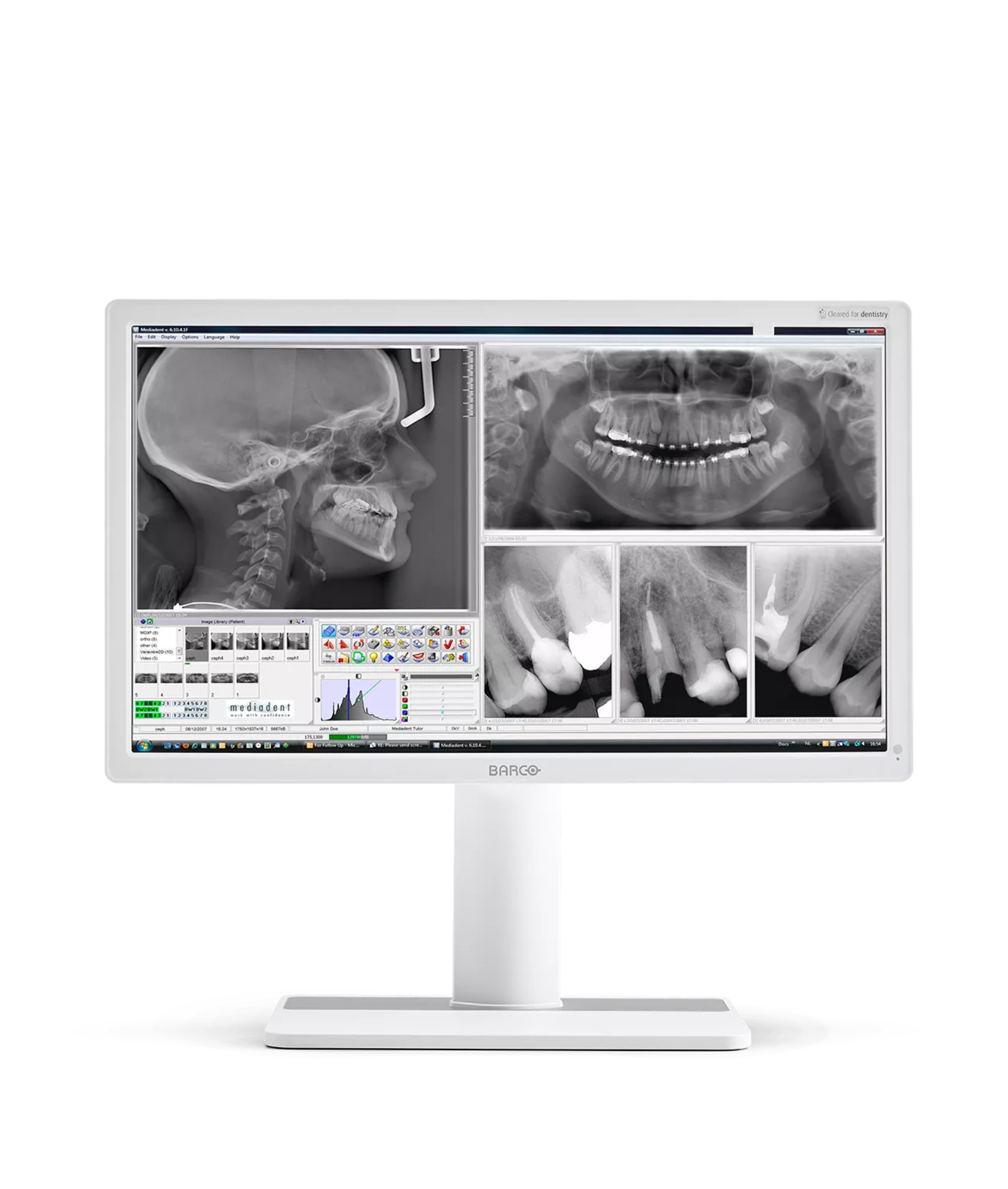

The Nio Color 2MP has been built for use in your reading or treatment room (room classes 5 and 6 as defined by DIN 6868-157). Its high brightness and contrast make subtle details more visible. So you can make diagnoses that are based on reliable images.
Automated quality control
Nio Color 2MP is always up to standard because of Barco’s luminance sensor technology and QAWeb Enterprise software. By constantly measuring and monitoring display brightness, we can ensure that your dental images will look consistent and accurate over time and across displays.
Compliant with medical safety standards
Nio Color 2MP is available with a protective cover (optional) for easy cleaning while complying with the medical 60601 safety standard. We recommend the version with optional cover if you want to give your patients a clear picture of their oral health.
Specifications
| Specification | MDNC-2123, option DE |
|---|---|
| Warranty | 5-year |
| Active Screen Size (H x V) |
521 x 293 mm (20.5 x 11.5″) |
| Screen technology | LCD |
| Diagonal size | 598 mm (23.6″) |
| Aspect ratio | 16:9 |
| Native Resolution | 2MP (1920 x 1080) |
| Luminance (DICOM calibrated) | 370 cd/m2 (460 cd/m2) |
| Contrast ratio | 1000:1 |
| Screen protection | Optional: Protective cover, anti-reflective glass cover |
| Front sensor technology | Integrated front-of-screen sensor, BLOS, ALC presets |
| Video input signals | DisplayPort, DVI |
| Medical device regulations | FDA: Medical Device Class II EC: Medical device class IIa (Regulation (EU) 2017/745″ |
| Package includes | Nio display, 5-year all inclusive warranty, QAWeb |
| Options | Additional MXRT graphics controller options, Intuitive Workflow Toolset, Protective cover, Additional warranty and service options |
Barco
Enabling bright outcomes
Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.
Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.
More than a medical display
Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.
We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.
Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
