MDH130 – Mobile Detector Holder With Tilt Function
MDH130 – Mobile Detector Holder With Tilt Function

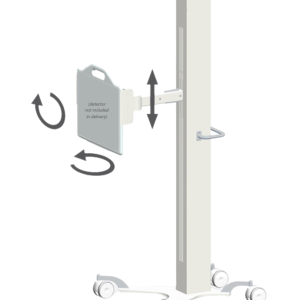

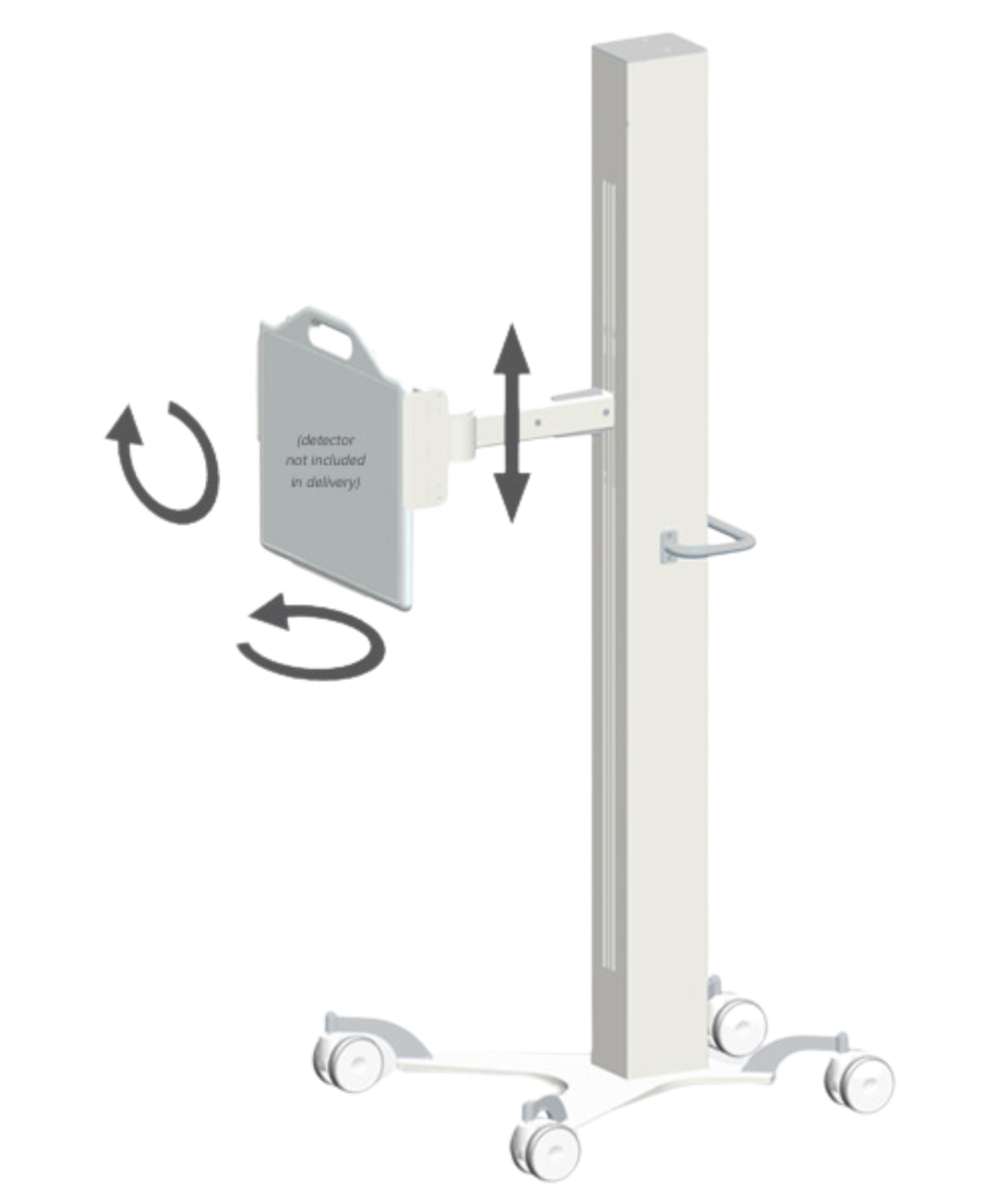

The mobile detector holder is suitable for thoracic, spinal, pelvic, cranial and abdominal mounting. The entire trunk of the body can be covered given the large adjustment area. The stands are ideal for hospitals and surgeries.
- Low space requirement with high stability
- Height adjustment: 30–1300 mm (distance – detector bottom edge to floor)
- Electroconductive castors (two with locking brakes)

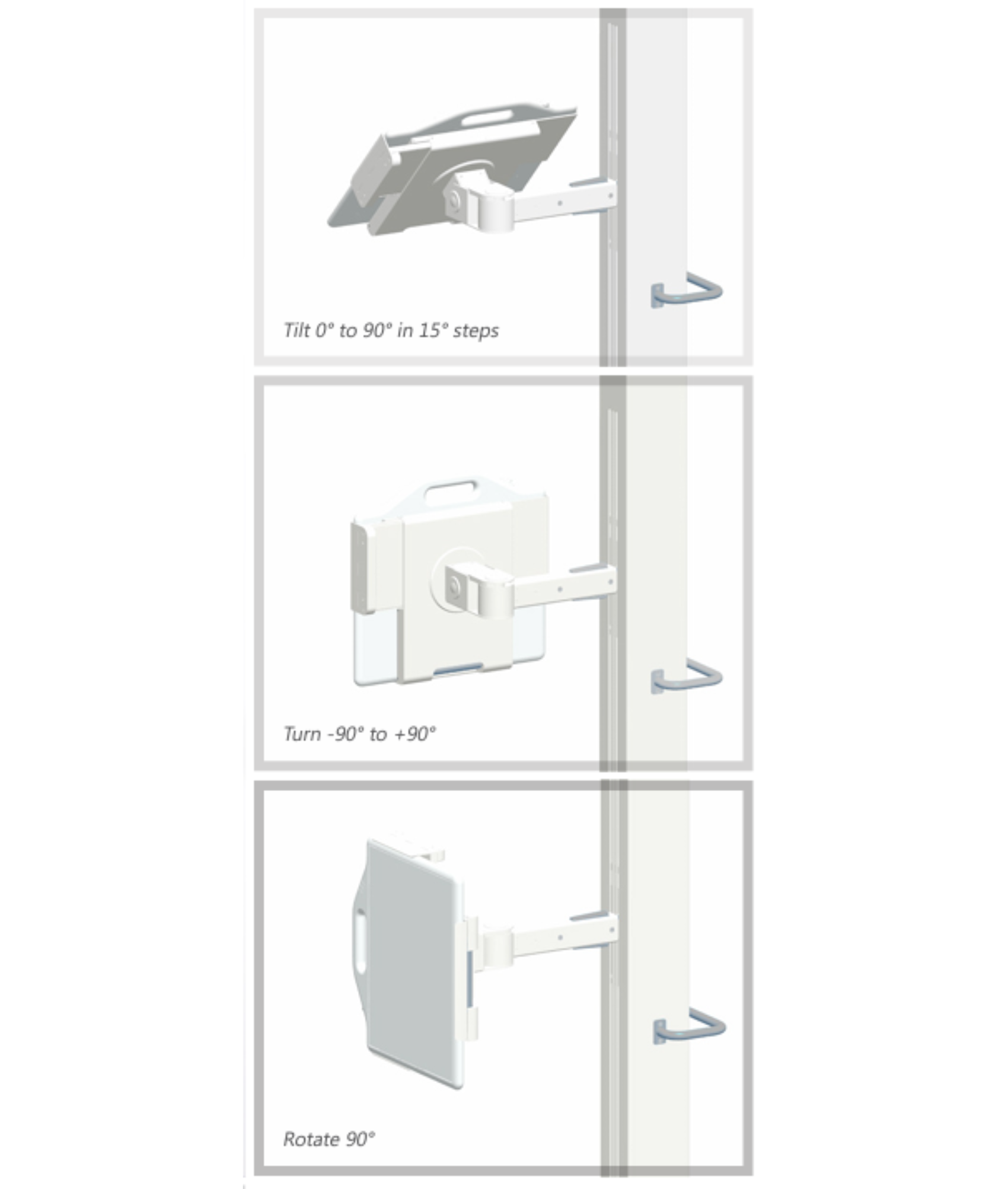

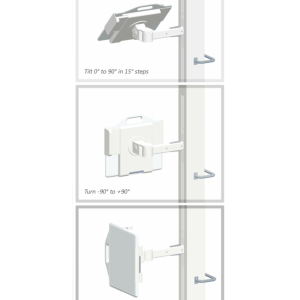

- Tilt: 0 – 90°, in 15° steps
- Suitable for flat detectors of different dimensions: 430 – 530 mm
- Maximum load capacity: 8.5 kg
- Dimensions: 1810 x 720 x 770 mm (H x W x D)
