Mobile X-Ray Protective Shield WD504

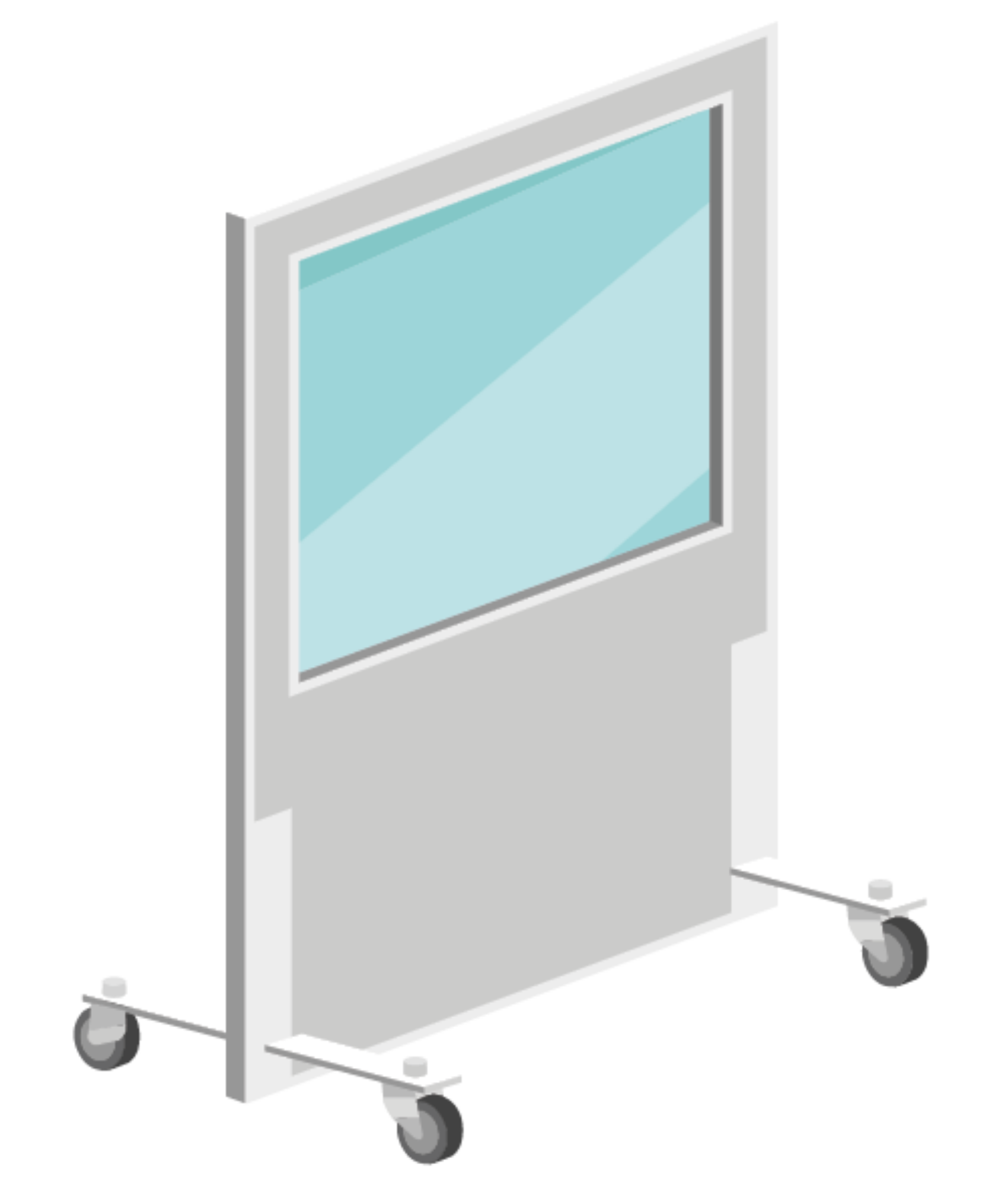

The WD504, available in different widths, with the large lead glass screen provides maximum protection with a clear view for personnel. Mobile protection screen in lightweight aluminium construction, with lead glass window.
Mobile protection screen in lightweight aluminium construction, with lead glass window – vision area: 785 x 580 mm (H x W), Pb 0.50 mm, shield size: 1928 x 724 mm (H x W), total height: 1,950 mm
- Easy and simple positioning
- MAVIG lead glass with excellent light transmission
- Light weight aluminum frame construction
- Overall width – 700 to 1700 mm
- Overall height – 1950 mm
- Window width – Available from 800 mm to 1700 mm
- Window height – 784 mm
- Lead Equivalent – Available in 0.50 mmPb or 2.00 mmPb
(Window is always 2.00 mmPb)
