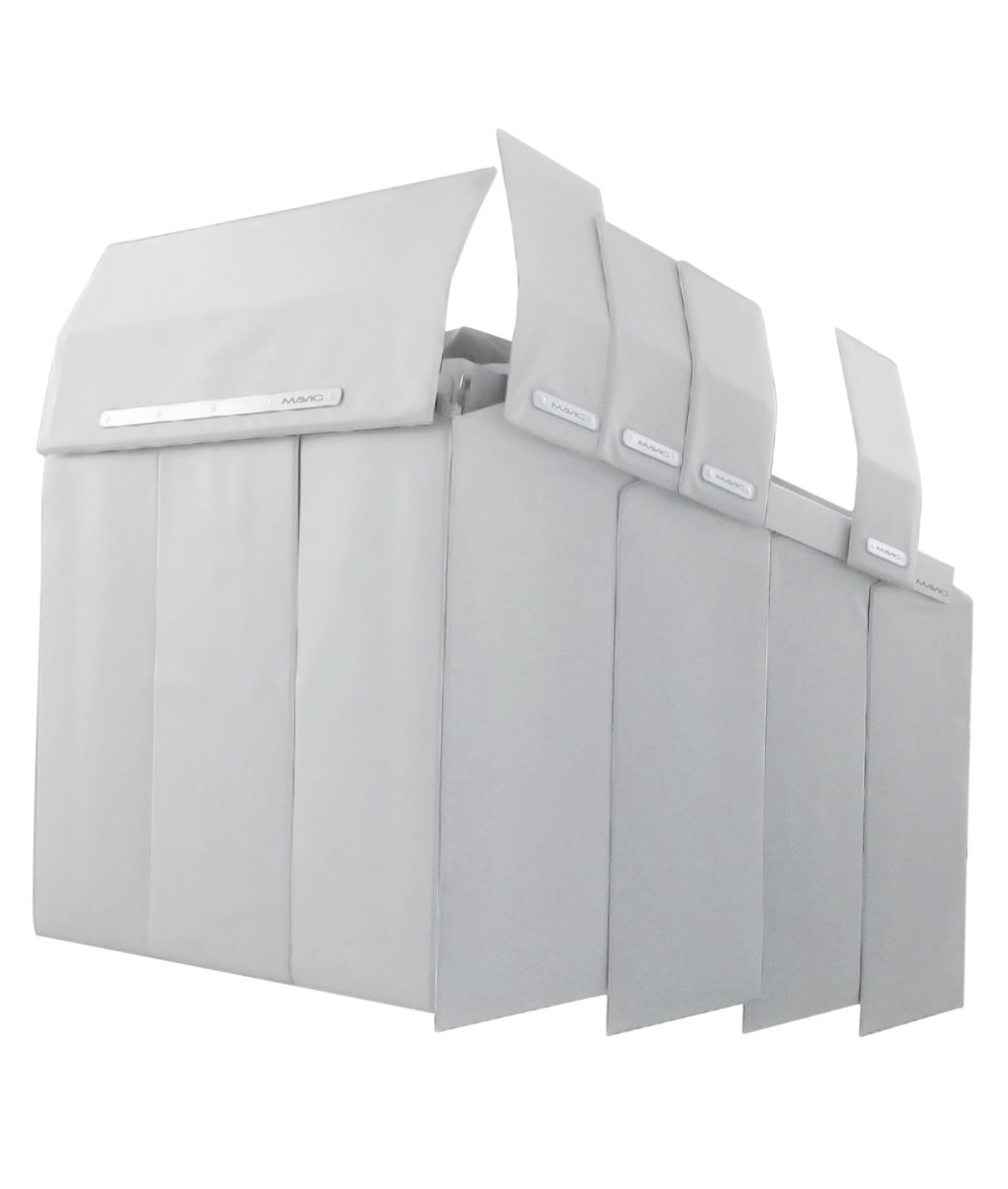

Lower Body Protection System UT5001-SI
Lower body protection model, for adaptation to Siemens Artis-zee multi-purpose tables by means of a special frame construction, one wide side panel (below the table) and one wide front panel each, including matching add-on attachment shields (1x front, 4x side).
MAVIG´s MVG-UT5001-SI offers ideal protection, especially in the gastroenterological working environment. For the first time, examiners and medical staff can carry out their work unhindered but protected at the same time. The lower protective shield consists of freely suspended, overlapping radiation protection panels which can be easily aligned vertically up to a table inclination of 15°.
The new multifunctional handles make it easy to carry, position and attach the lower body protection. The various attachment shields of the MVG-UT5001-SI can be combined and individually arranged to meet a wide range of interventional applications and protection needs. To facilitate uncomplicated patient positioning and in an emergency, the attachment shields can be removed as quickly as possible.
- Special frame for attaching the MVG-UT5001-SI to the Siemens Artis zee multi-purpose table
- Wide lower body side panel that can be fitted on both sides for large-area protection
- Front panel can be mounted on the front side below the table for extended protection
- Add-on attachment shields, 2 x short & 2 x long, for individual positioning
- Overlapping, flexible radiation protective panels with PVC covering
- Lead equivalent of 0.50 mm Pb
- Includes wall mounts (2 x upper and 2 x lower part)
