Lower Body Shielding – Model 6030 with 460 mm accessory rail (GE, profile: 7.7 x 25 mm)

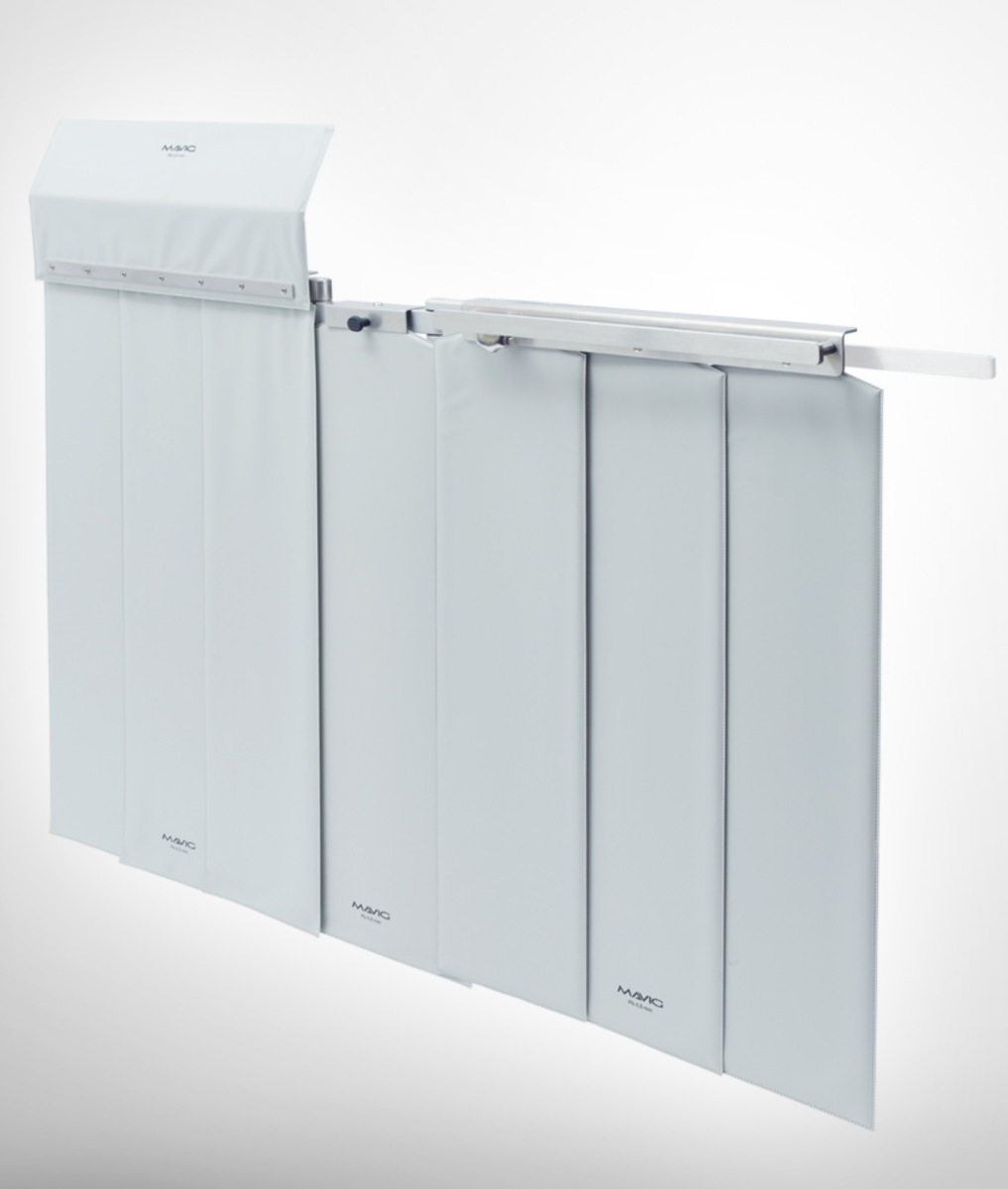

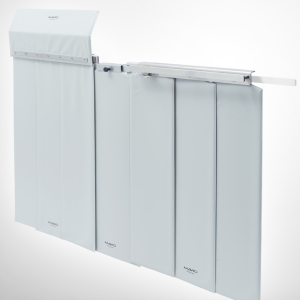

MVG-UT6030 – Lower Body Protection System

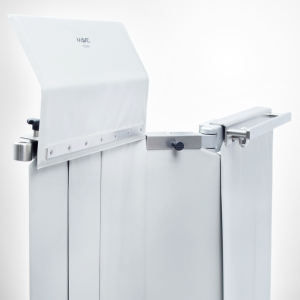

The lower body protection system has a stable construction, rounded edges for low injury risks and a significantly larger protection zone against X-ray radiation scattering for the examiner and the assistant. Flexible, overlapping panels are more comfortable for the examiner and allow undisturbed movement of the C-arm. The pivoting panels adjust to a possible tilt of the table of up to 15°.

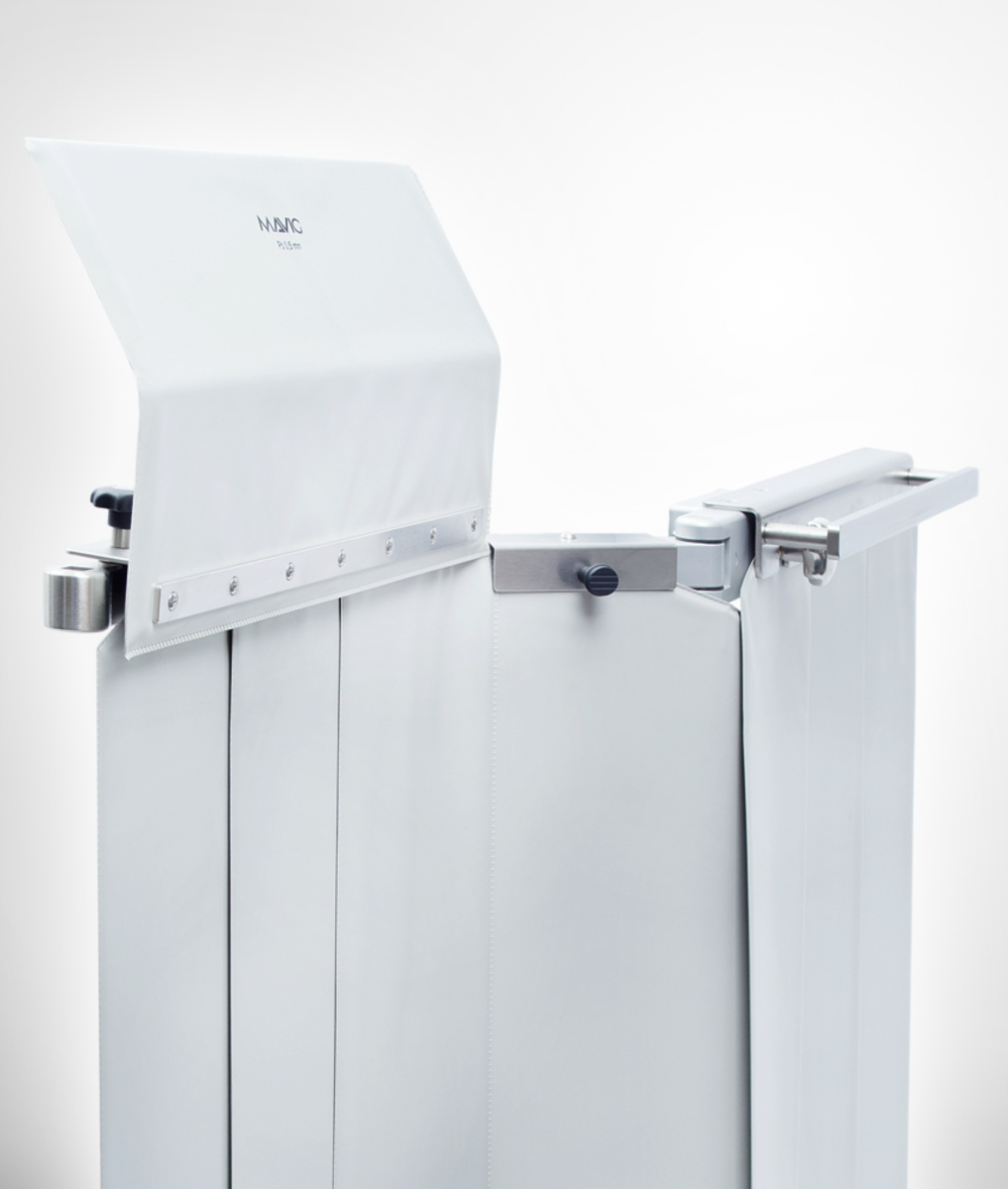

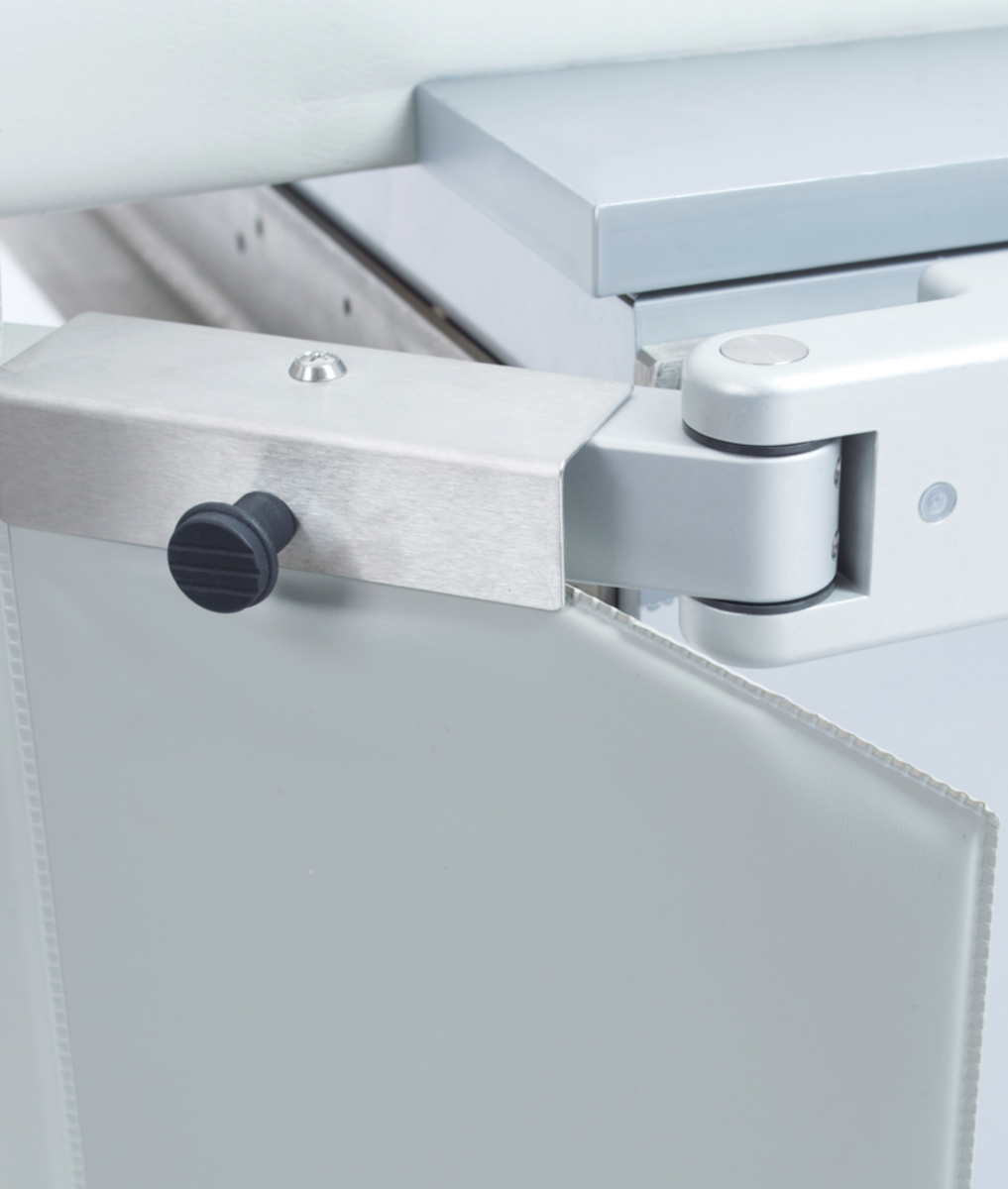

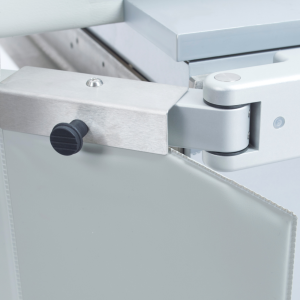

• Double-jointed adapter with 290 mm wide additional panel for flexibility
• Upper table scatter radiation attachment shield for the 500 mm wide lower
• Optimised surfaces for thorough and time-saving hygiene
• Lead equivalent of 0.50 mm Pb for each protection component
• Suitable for table rails with profiles from 7 x 25 mm to 10 x 30 mm
• Additional 460 mm long accessory rail (MVG-UT6030: 7.7 x 25 mm, MVG-UT6031:
9 x 25 mm or MVG-UT6032: 10 x 25 mm), e.g. for mounting control elements up to
a maximum of 15.0 kg

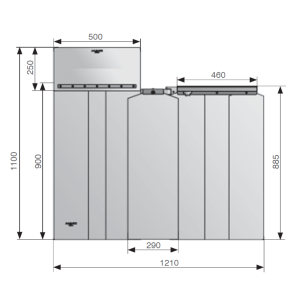

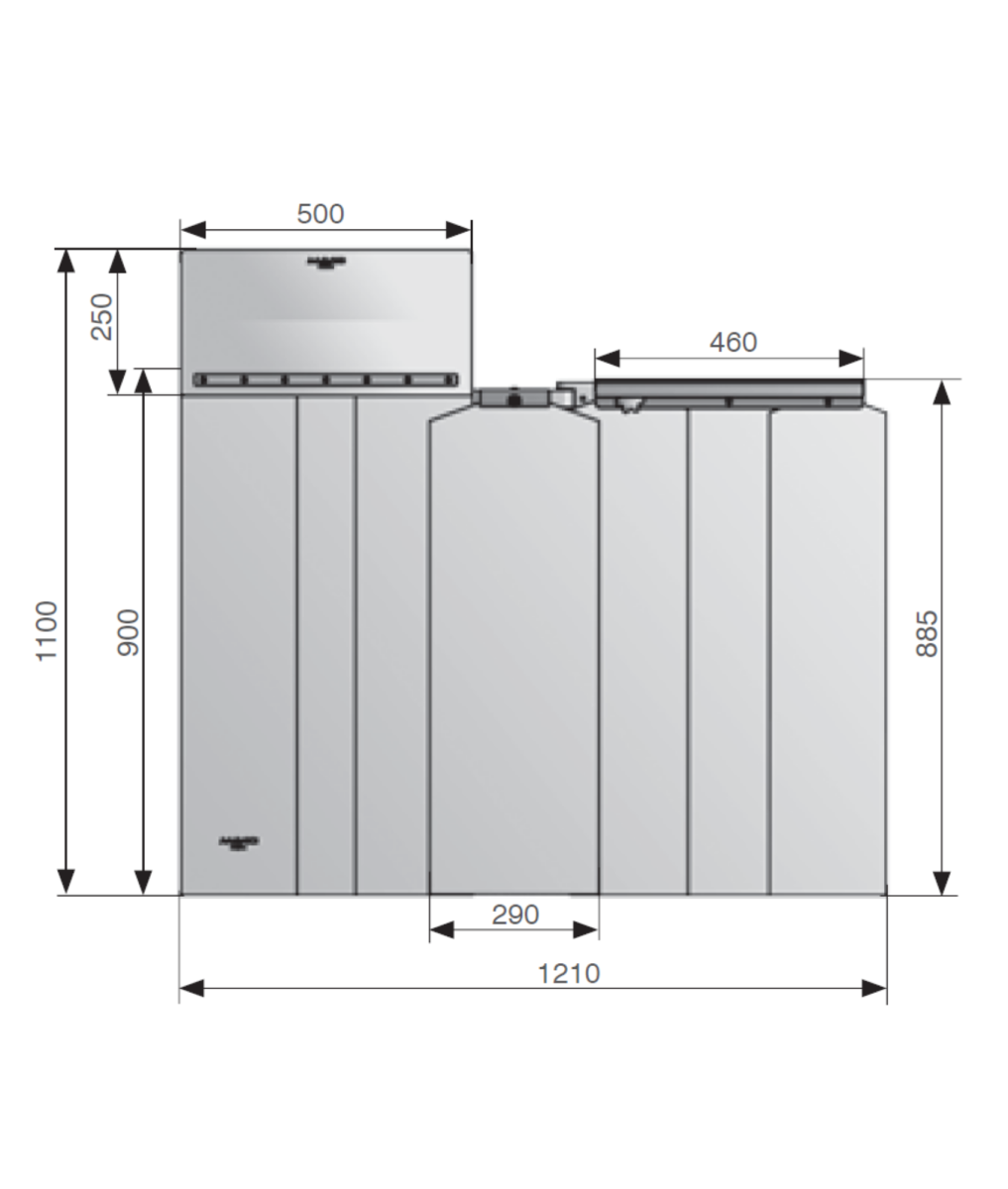

• Dimensions of MVG-UT60xx:
Height with upper shield: 1,100 mm (without upper shield 900 mm)
Main section 885 x 540 mm (H x W; three overlapping panels
• Total weight: 21.7 kg (with upper shield)
• Including wall mountings (1x for 500 mm wide lower part, 1x for upper shield)
